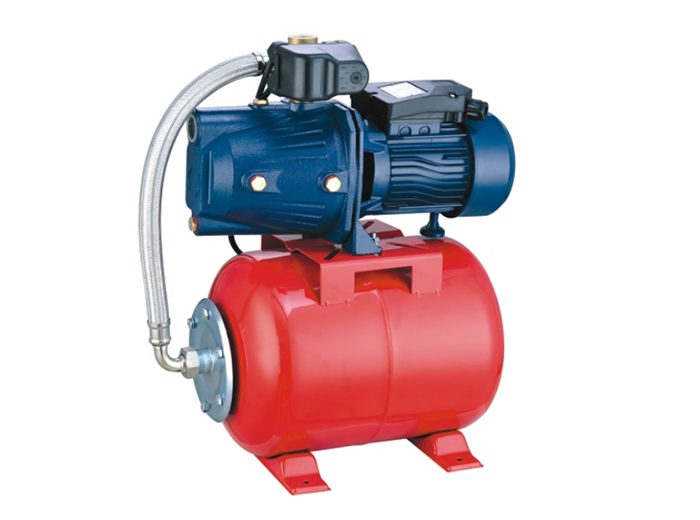

AUTOMATIC PUMP STATION COMPONENT
* Tank
Capacity:19L/24L/50L
Membrane:Rubber/EPEM
* Pressure gauge
Scale:0-6bar/0-10bar/0-12bar
Casing:plastic/iron
Connector:iron/brass
* Pressure switch
Model:JTBS-2/-9
* Flex.hose
Diameter:Φ27MM
Material:aluminium/stainless steel
Length:50CM
Connector:1”*1”
*5 way connector
Material:100% brass
Weight:170g/200g

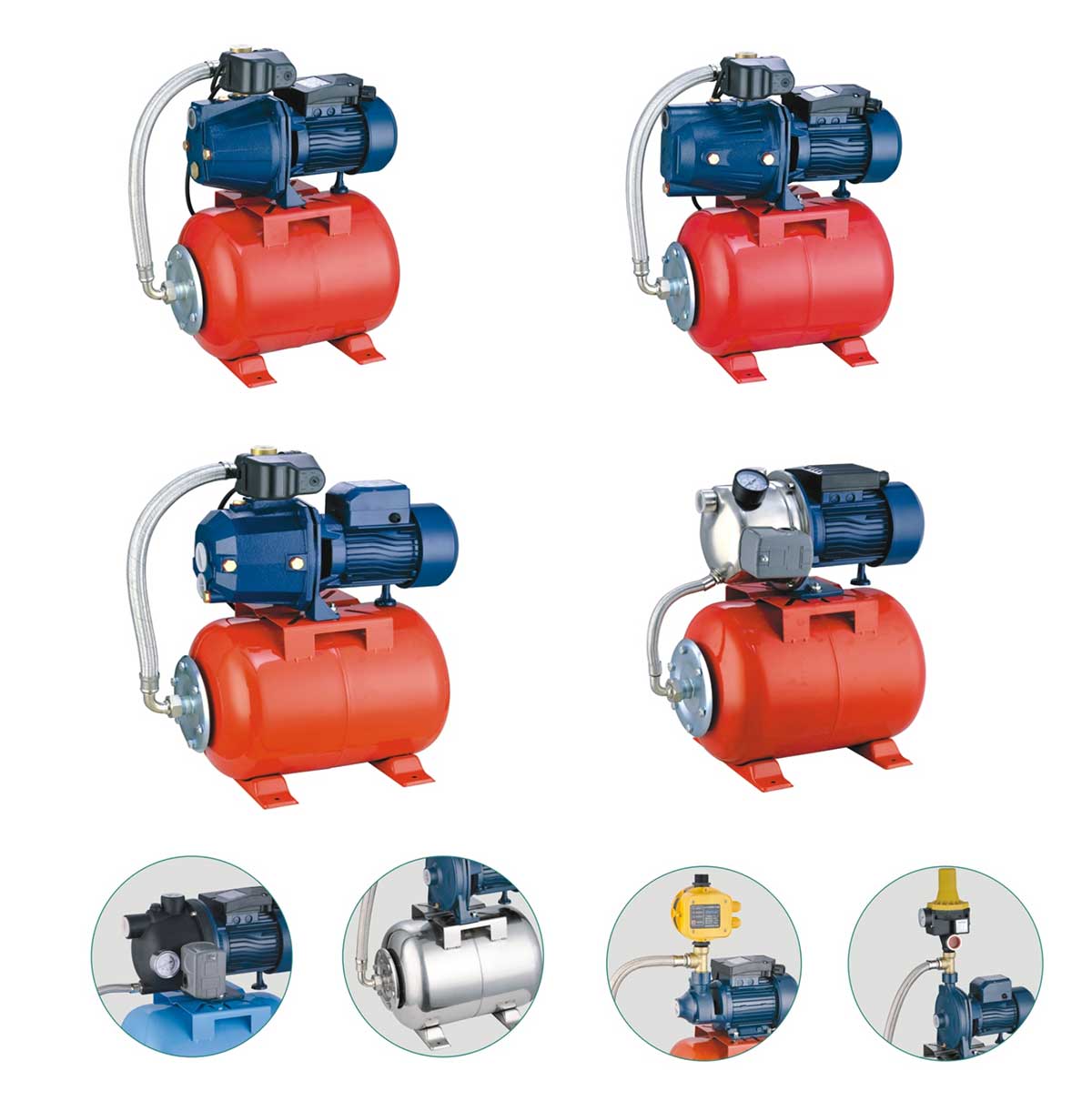

PUMP INSTALLATION AND APPLICATIONS
This system is AUTOMATIC PRESSURIZATION UNITS utilizing pumps from the JET , JDP , STP , QB , CPM ranges.They are supplied completely with tank (or electronic switch) , these systems provide sufficient water pressure for modern domestic appliances,ensuring sufficient water supply for all user outlets.
