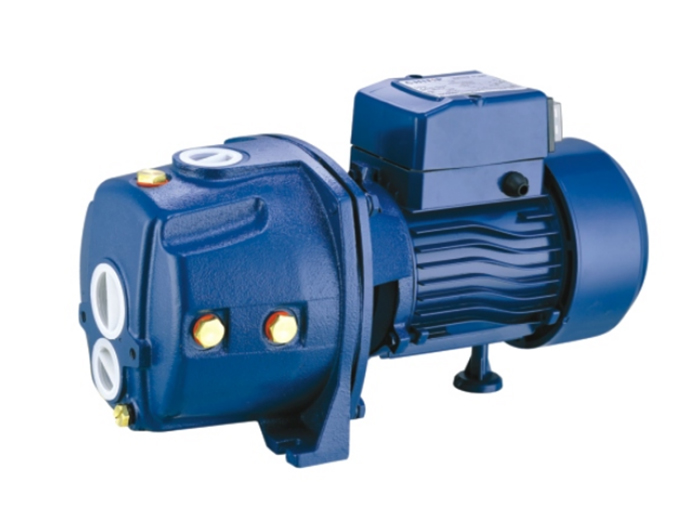

JDW Self-Priming Jet Pump

PUMP

. Cast iron pump body and support

. Stainless steel/brass/PPO impeller

. Max. Liquid temperature:+40℃


Share

  • Overall Dimension

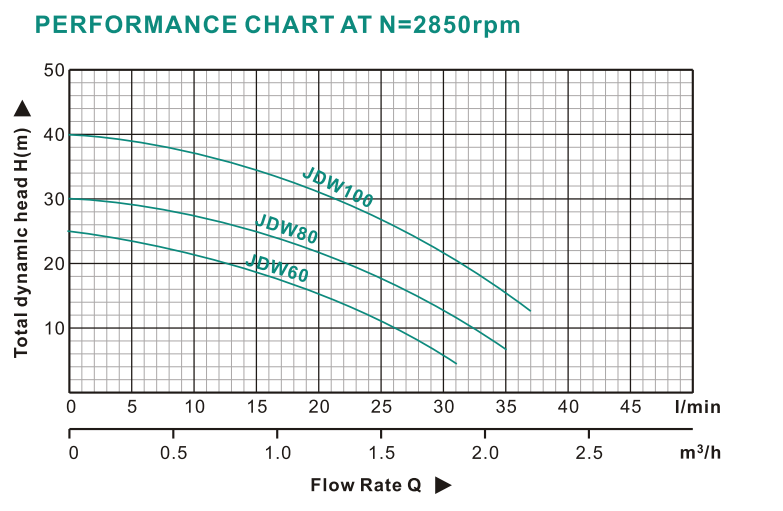

  • Performance Curves

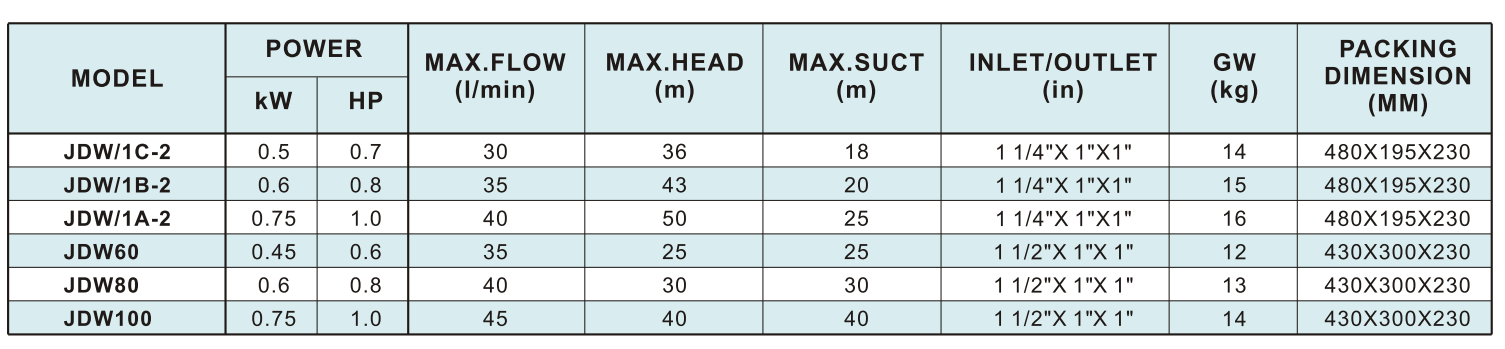

  • Technical Parameter List

PUMP

. Cast iron pump body and support

. Stainless steel/brass/PPO impeller

. Max. Liquid temperature:+40℃



MOTOR

. Motor with copper winding

. Shaft:Stainless steel welded shaft/45# steel Be electroplated

. Insulation class:B or F

. Protection class:IP*4

. Max.Ambient temperature:40℃

. Cooling:External ventilation



PUMP INSTALLATION AND APPLICATIONS

Self-priming JET and centrifugal pumps for deep wells water pumps installed above ground with the jet body submerged guarantees function even when the static level of the well water falls as far as 25 meters below the level of the installed pump.So they are extremely reliable,economical and simple to use and find many usages in domestic

applications and the automatic distribution of water from small and medium-sized surge tanks,watering gardens,etc,In all cases where the suction depth exceeds the normal capacity for surface pumps. It is suitable for pumping clean water and liquid which are not chemically aggressive to the pump components.
