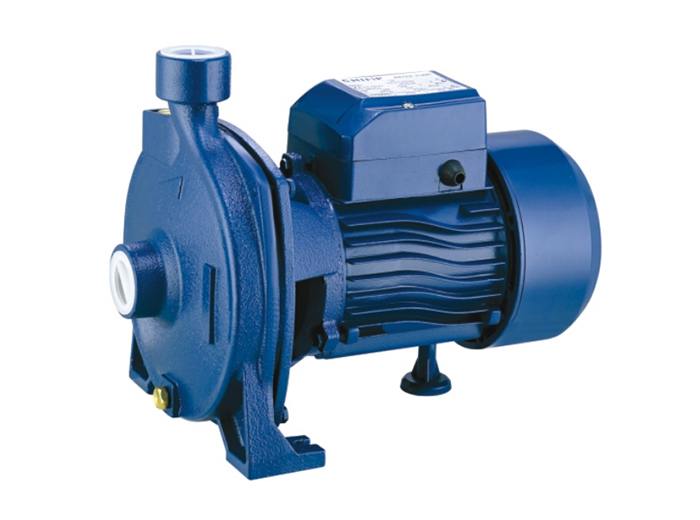

CPM Centrifugal Pump

PUMP

. Cast iron pump body and support

. Stainless steel/Brass impeller

. Max. Liquid temperature:+40℃

. Max Suction:+8m


Share

  • Overall Dimension

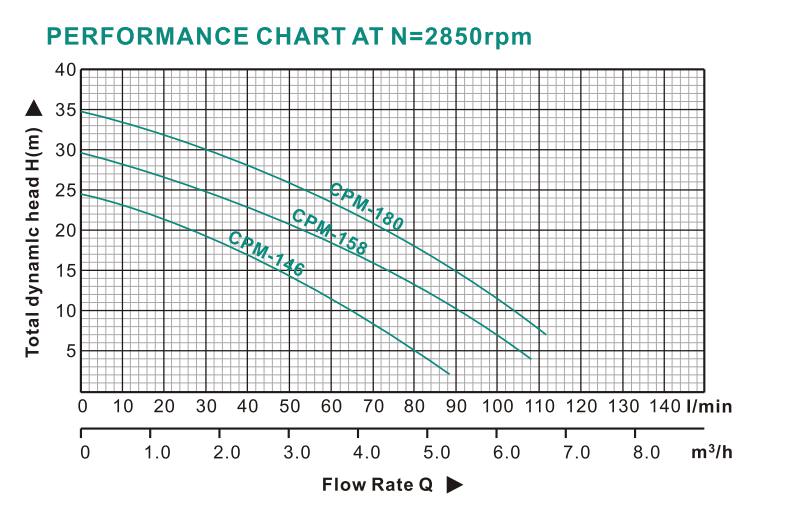

  • Performance Curves

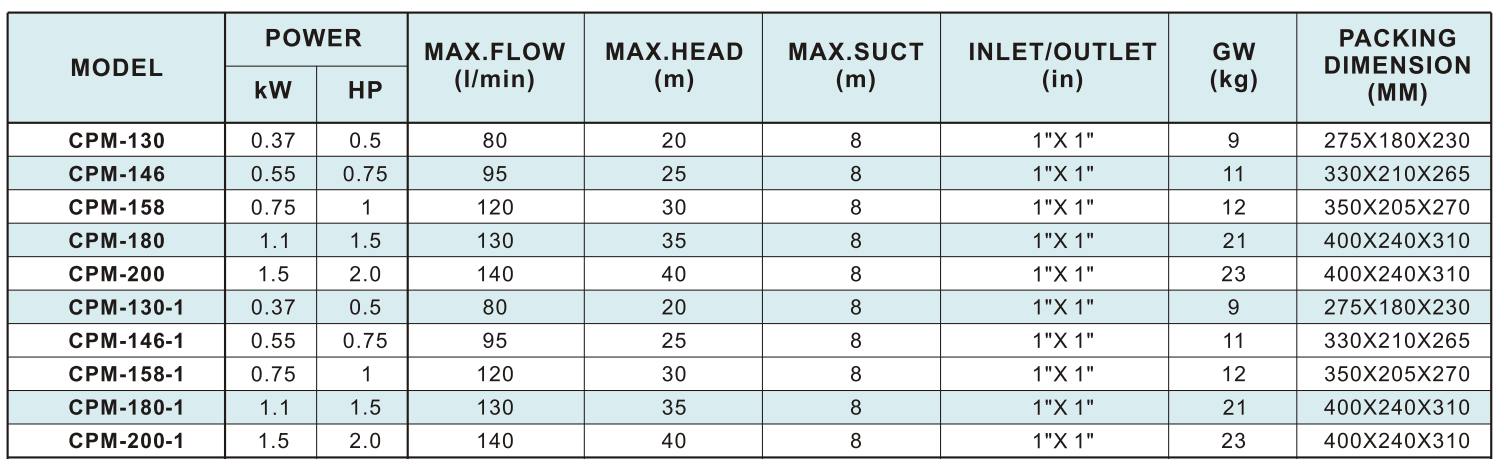

  • Technical Parameter List

PUMP

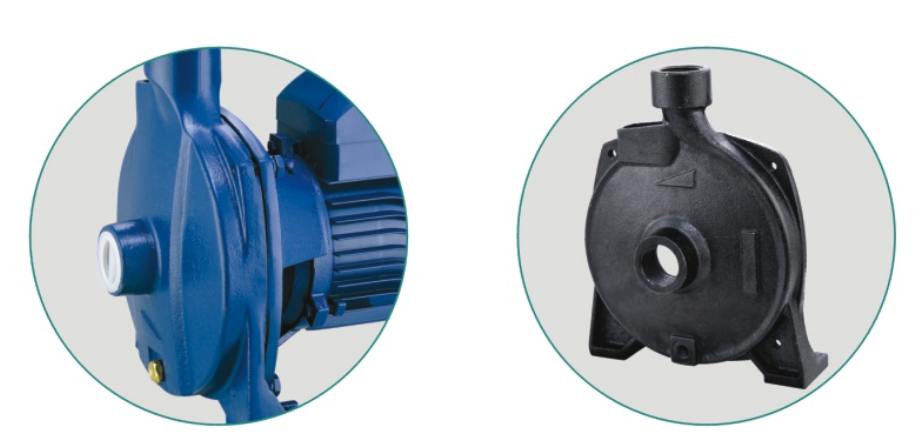

. Cast iron pump body and support

. Stainless steel/Brass impeller

. Max. Liquid temperature:+40℃

. Max Suction:+8m



MOTOR

. Motor with copper winding

. Shaft:Stainless steel welded shaft/45# steel be electroplated

. Insulation class:B or F

. Protection class:IP*4

. Max.Ambient temperature:40℃

. Cooling:External ventilation



PUMP INSTALLATION AND APPLICATIONS

It can be used to transfer clean water or other liquids similar to water in physical and chemical properties.It is suitable for industrial use and urban water supply,pressure boosting for high buildings and fire fighting,garden irrigation,long-distance water transfer,heating ventilation and air controlling,circulation and pressure boosting for cold and hot water,and supporting equipment etc.
