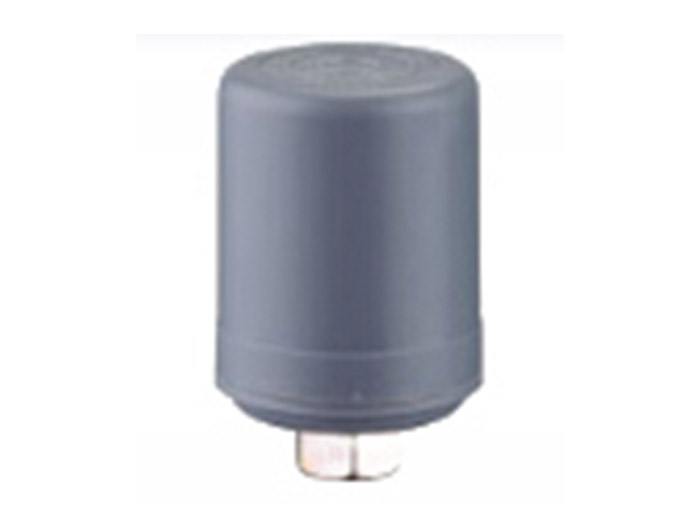

JTBS-3B Pressure Switch

Descriptions:
1. Rated Voltage:110V/230V
2. Max Current:12A/6A
3. Pressure Range:0.8-3.5bar
4. Pressure setting: 0.8-1.6bar   1.0-1.7bar   1.1-1.8bar 1.5-2.2bar
5. Joint Screw: G1/4", G3/8
6. Protection Grade:IP20
7. Working temperature:0-55℃
8. Application: Self-Priming Pump/Jet Pump/Garden Pump/Clarified water Pump

Share

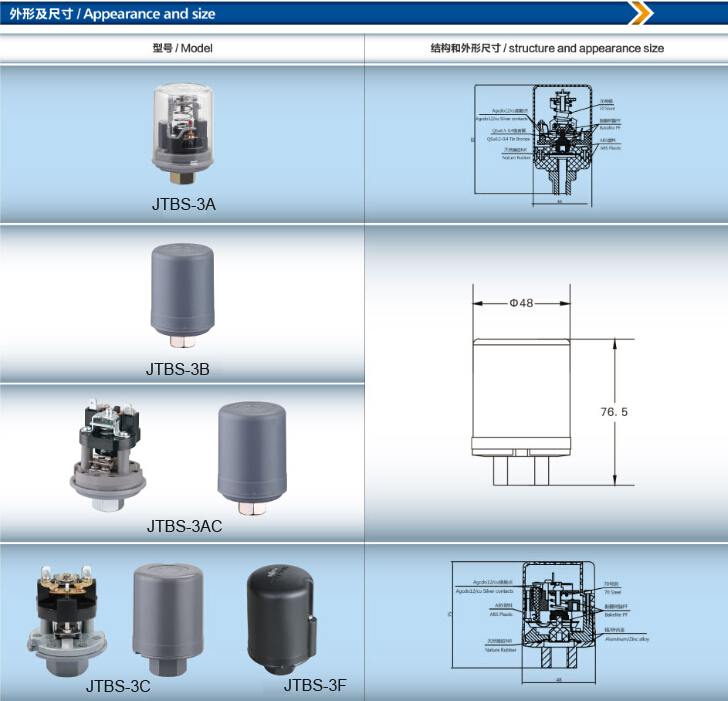

  • Overall Dimension
  • Performance Curves
  • Technical Parameter List

Descriptions:
1. Rated Voltage:110V/230V
2. Max Current:12A/6A
3. Pressure Range:0.8-3.5bar
4. Pressure setting: 0.8-1.6bar   1.0-1.7bar   1.1-1.8bar 1.5-2.2bar
5. Joint Screw: G1/4", G3/8
6. Protection Grade:IP20
7. Working temperature:0-55℃
8. Application: Self-Priming Pump/Jet Pump/Garden Pump/Clarified water Pump


Features:
According to the pressure changes in the pipe, it can open and close the pumps automatically
