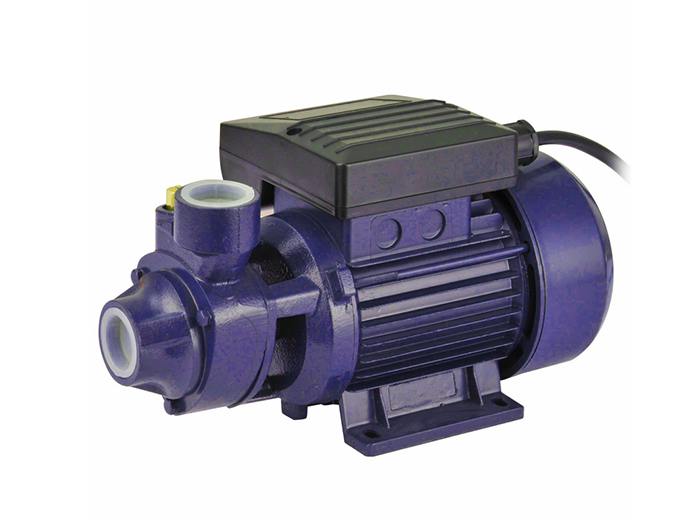

QB Peripheral Pump

PUMP

. Rust-free copper inserts prevent impeller’s block

 When starting after the pump is unused for a long time.

. Brass impeller with evenly arranged radial vanes

. Max. Liquid temperature:+35℃

. Max Suction:+8m

. Cast iron pump body and support

Share

  • Overall Dimension

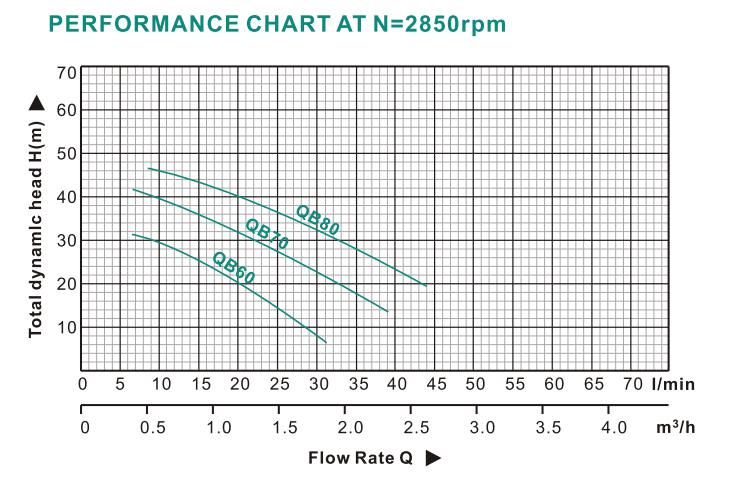

  • Performance Curves

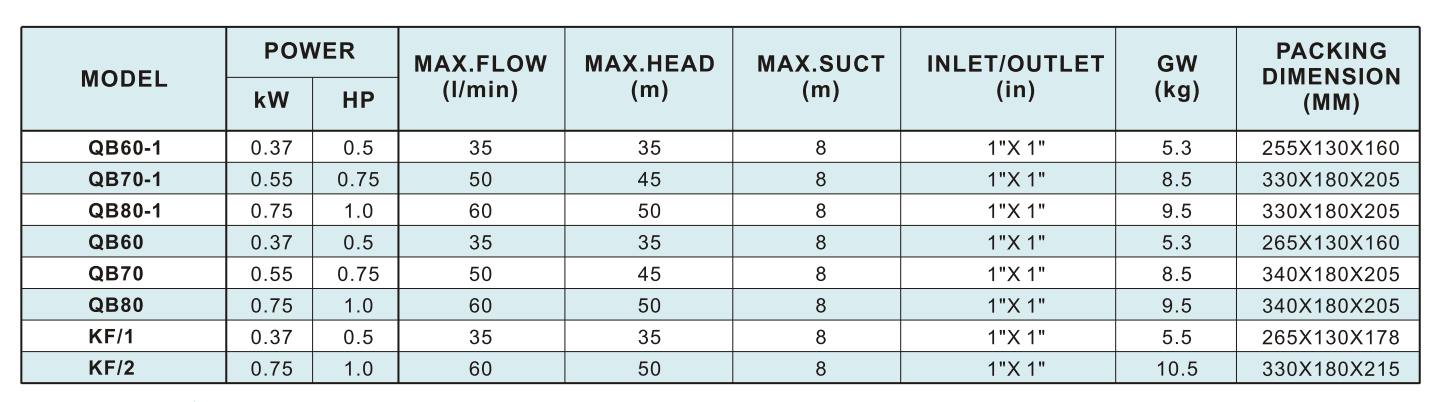

  • Technical Parameter List

PUMP

. Rust-free copper inserts prevent impeller’s block

 When starting after the pump is unused for a long time.

. Brass impeller with evenly arranged radial vanes

. Max. Liquid temperature:+35℃

. Max Suction:+8m

. Cast iron pump body and support



MOTOR

. Motor with copper winding

. Shaft:Stainless steel welded shaft/45# steel be electroplated

. Insulation class:B or F

. Protection class:IP*4

. Max.Ambient temperature:40℃

. Cooling:External ventilation



PUMP INSTALLATION AND APPLICATIONS

It can be used to transfer clean water or other liquids similar to water in physical and chemical properties.It is suitable for small living water supply,automatic water sprinkler system, small air conditioner system or supporting equipment etc.
