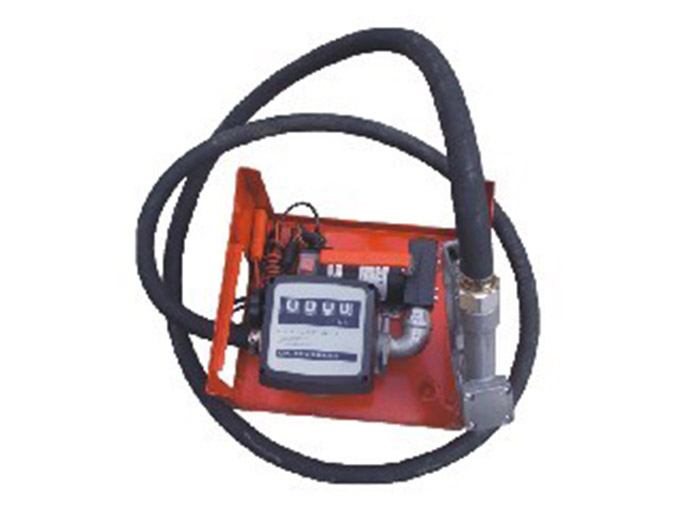

YTB-40 Oil Pump

YTB-40 with DC 12V&24V is an high efficiency diesel pump with small size, big flow, high delivery head and vehicle battery driven for easy operating.

It can work with diesel, machine oil and transformer oil(forbidden to work with easy explosive oil like gasoline etc.), suitable for small gas station and self filling for mobile machinery shop, trucker and etc.


Share

  • Overall Dimension
  • Performance Curves

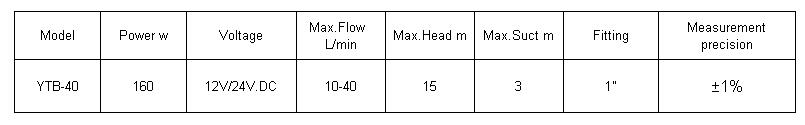

  • Technical Parameter List

Summary

YTB-40 with DC 12V&24V is an high efficiency diesel pump with small size, big flow, high delivery head and vehicle battery driven for easy operating.

It can work with diesel, machine oil and transformer oil(forbidden to work with easy explosive oil like gasoline etc.), suitable for small gas station and self filling for mobile machinery shop, trucker and etc.

1. Small size, light and easy carrying.

2. Big flow and strong sucking.

3. Vehicle battery driven, easy and quick.

4. Firmly and stable.


Notice

1. Voltage supply must be confirmed before cable connecting.

2. Power supply: 12V/24V DC, +/-5%.

3. A small quantity of liquid must be added in pump before pump first time using.

4. Connect the input and output pipe according the arrow symbol on the pump.

5. All the pump and connecter must be well sealed and no air leakage.

6. Not over 20min. in each single time continuous running.
