H600-1 Lifting Pump

Share

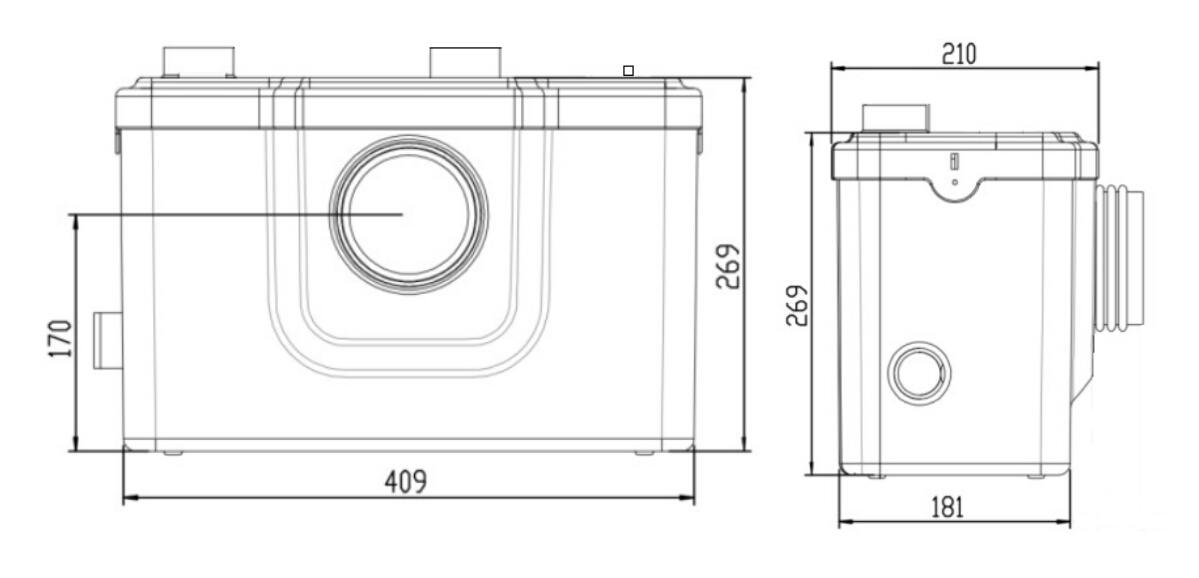

  • Overall Dimension
  • Performance Curves
  • Technical Parameter List
Description
Model No: H600-1
Material:  PPDeodorize type: Regular
Idle speed:2850r/minInput flow: 100L/min
Input Voltage: AC230V/50HzPower: 600W
Current: 2.2APower factor:0.65
Control: Automatic / manualEquipment operation :interval
Shaft of Pump: HorizontalType of the pump: Centrifugal pump
Impeller type: VaneBlade:  3 blade
Height of maximum evacuation: ≤7mHorizontal of maximum evacuation: ≤70m
Start liquid level:90mmStop liquid level:40mm
Sewage Inlet:  D100MM 1PCSewage temperature: 1—90(℃)
             D40MM  2 PCS                 33.8—194(℉)
Sewage Outlet: D40mm 1pcCapactiance: 10uF/450V(CBB60)
Degree of protection: IPX4Switch: 1 pc
Motor Hot Proection Level:125℃



H600-1 Lifting Pump
