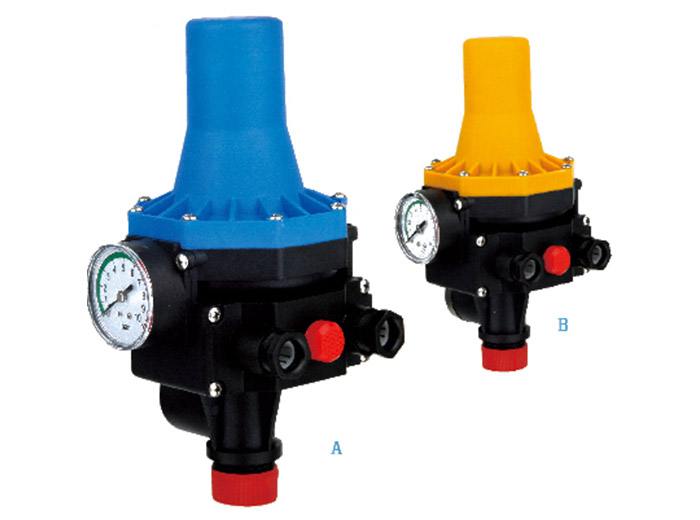

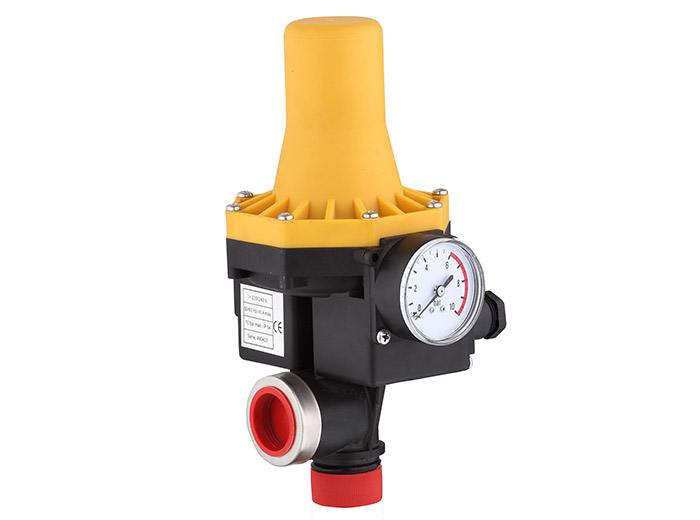

JTDS-3 Electronic Control

Descriptions:

1. Rated Voltage:110V/230V

2. Max.current:10(6)A

3. Frequency:60HZ/50HZ

4. Joint Screw:G1"

5. Starting Pressure:1.5bar/2.2bar

6. Max.Power:1.1KW

7. Protection Grade:IP65

8. Max Working Pressure: 10Bar

9. Max Operating temperature: 60℃

10. Application: Self-Priming Pump/Jet Pump/Garden Pump/Clarified water Pump

Function:

1. Start and stop the pump automatically

2. Protect the pump from damage caused by dry-running
