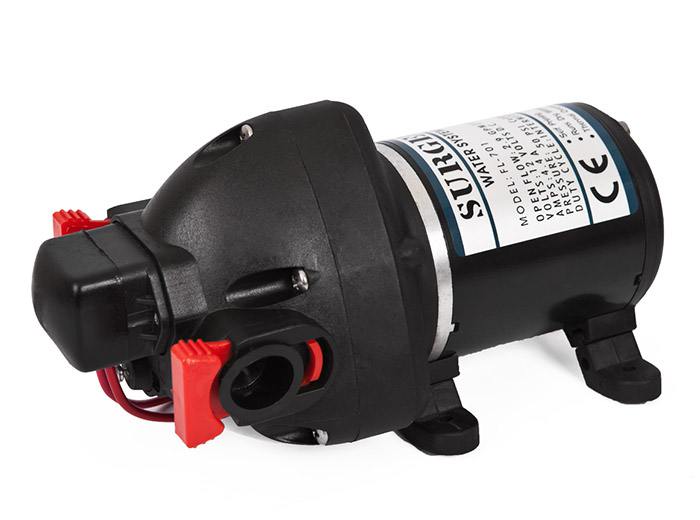

FL-701 Diaphragm Pumps

Triangle Diaphragm Pump

Features:

.Motor Voltage: 12/24V DC

.Max Flow rate: 10.01pm(2.9gpm)

.Max Pressure: 80psi(5.5bar)

.4 kinds of inlet/outlet filter for your choice.

Share

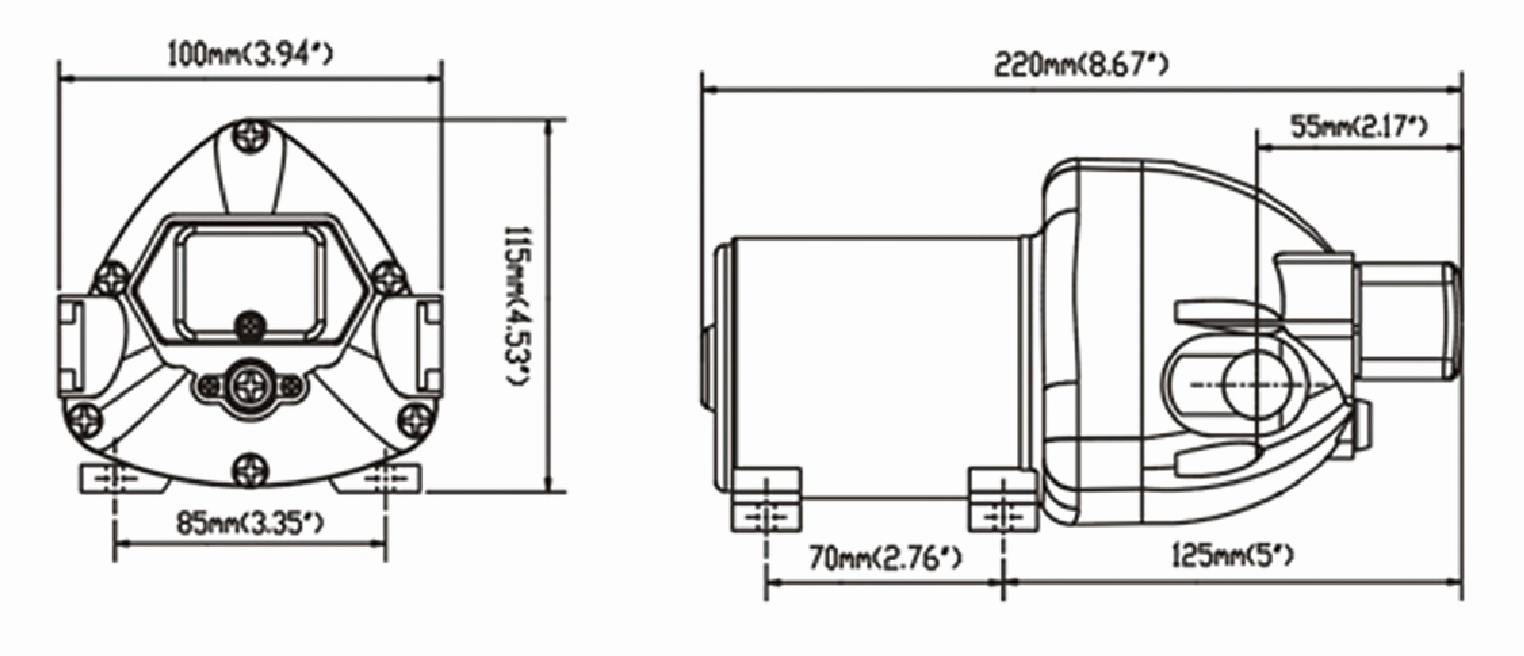

  • Overall Dimension
  • Performance Curves
  • Technical Parameter List

Triangle Diaphragm Pump

Features:

.Motor Voltage: 12/24V DC

.Max Flow rate: 10.01pm(2.9gpm)

.Max Pressure: 80psi(5.5bar)

.4 kinds of inlet/outlet filter for your choice.

 Inlet/Outlet fitting: 12.5mm pyramid hose barb,1/4 NPT male thread fitting, etc for your choice.

.Protection: pressure switch protection: pressure-off protection or circumfluence switch protection.

 For the powered control you can choose pump without pressure protection.

. Duty Cycle: Intermittent (under different pressure the continuous working time will also be different)
