DC&AC Diaphragm Pump
Features:
Maximum torque and operating efficiency
Higher operating pressure and/or lower amperage than competitive pumps long life, no leaks.
Low noise ,acid, alkali and corrosion resistant .Run dry with no problem.
Thermal over load protection automatically stops motor should it overhear due to over load, with auto re-start feature.
Functions:
*Motor Voltage: 12/24V DC ,110V/220V AC
*Max flow rate: 17IPM(4.5gpm), can be adjusted from 3.0-17Ipm(0.8-4.5gpm) as required.
*Max pressure: 60psi (4.2bar),can be adjusted from 10 psi(0.6bar) to 60psi(4.2bar) as required.

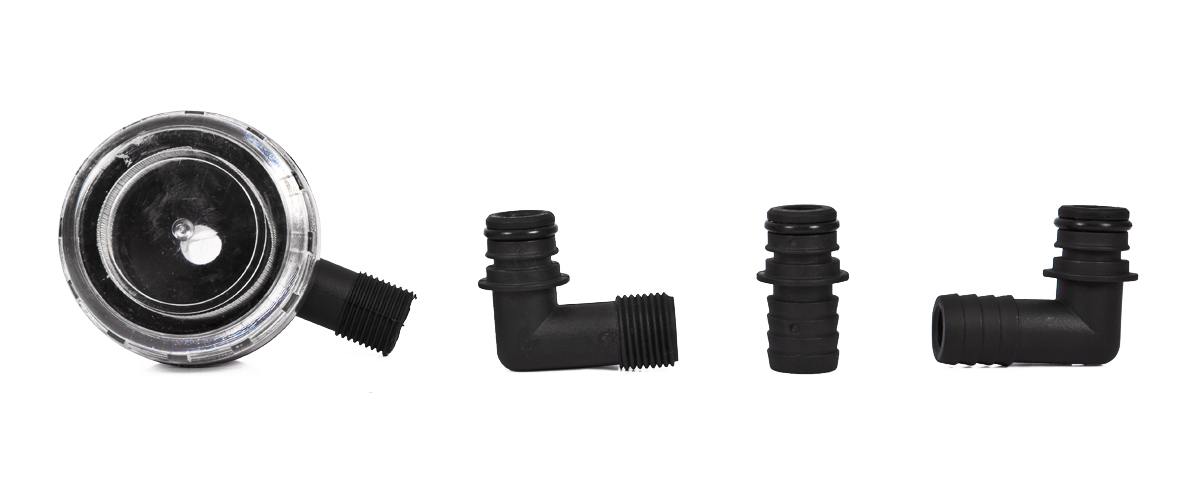

*4 kinds of inlet/outlet filter for your choice. Inlet/outlet fitting:12.5mm pyramid hose barb.1/4Npt male thread fitting ,etc for your choice.
*Protection: pressure switch protection : pressure-off protection or circumfluence switch protection. for the powered control you can choose pump without pressure protection.
*Duty cycle: Intermittent(under different pressure the continuous working time will also be different)
