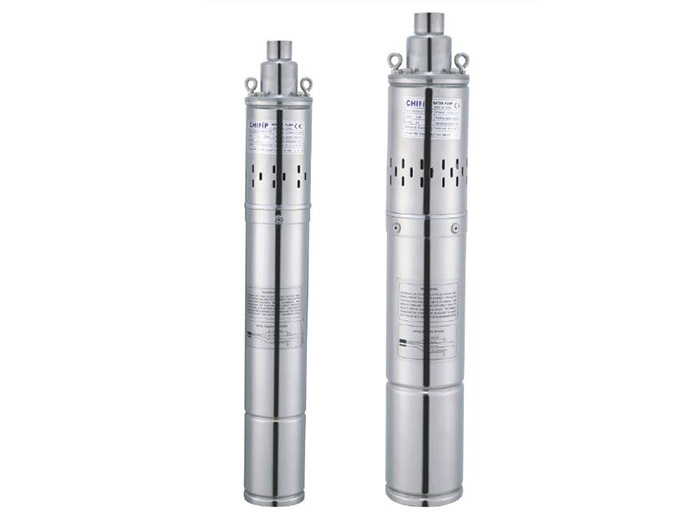

4QG Bore Hole Pump

Identification Code

eg: 4QG

4 : Well dia 96mm( 4")

QG: Pump Name

D: Singles motor(three phase without D)

1.2 : Capacity(m3/h)

50 : Head(m)

0.37: : Motor power(KW)


Share

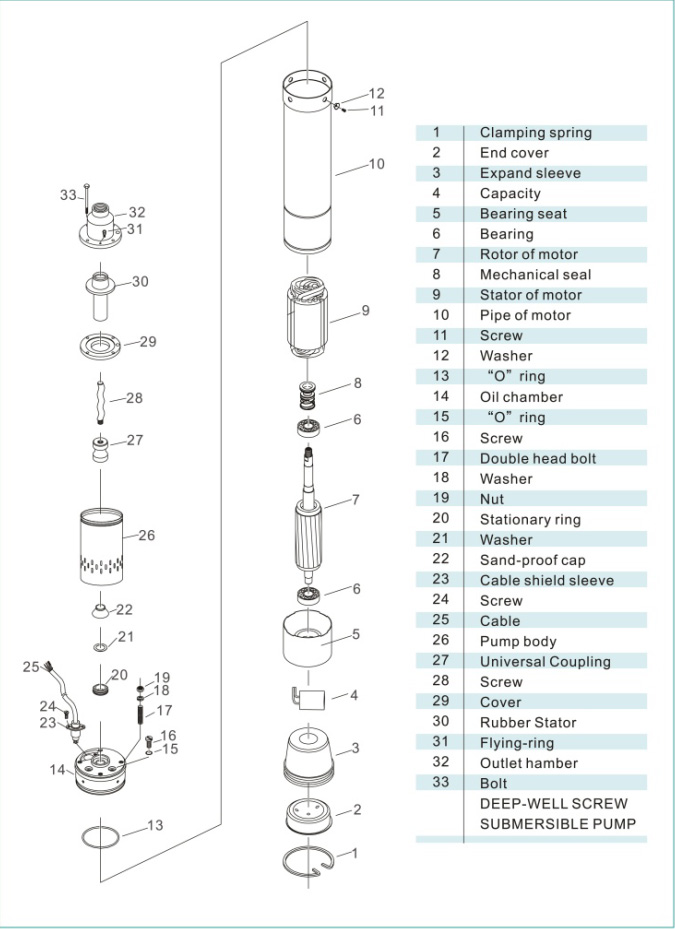

  • Overall Dimension
  • Performance Curves

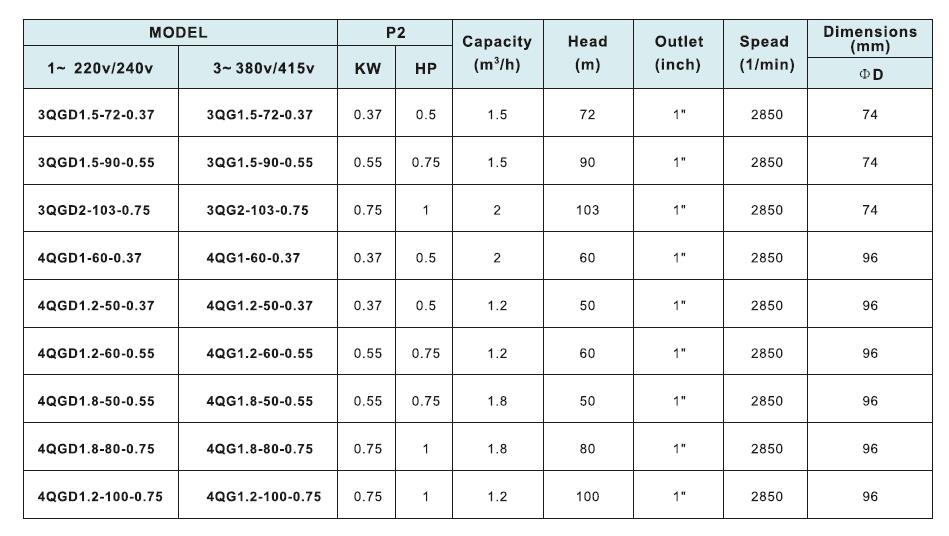

  • Technical Parameter List

Applications :

For water supply from wells or reservoirs.

For domestic use, for civil and industrial applications.

for garden use and irrigation.


Operating conditions :

Maximum fluid temperature up to +35℃

Maximum sand content:0.25%

Maximum immersion depth:50m.

Minimum well diameter:3”.

Minimum well diameter:4”


Motor :

Rewind able motor or Full obturnated screen motor

Three-phase: 380V-415V/50Hz

Single-phase: 220V-240V/50Hz

Equip with special start-up control box

Pumps are designed by casing stressed

NEMA dimension standards.

Special features available

Other voltages.

Frequency 60Hz.

Other mechanical seal.

Equip with Auto-control box.

Warranty:1 year

(according to our general sales conditions).
